Hitch Climber Pulley

Hitch Climber Pulley

SKU: 8405
Weight: 0.35 lb
Sold out
$1.00 - $1.00
$1.00
$1.00
$1.00 - $1.00
$1.00

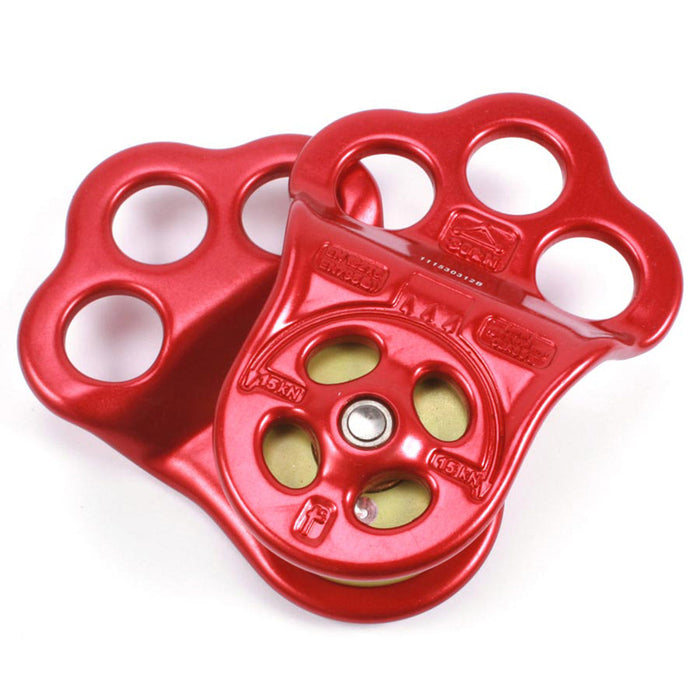

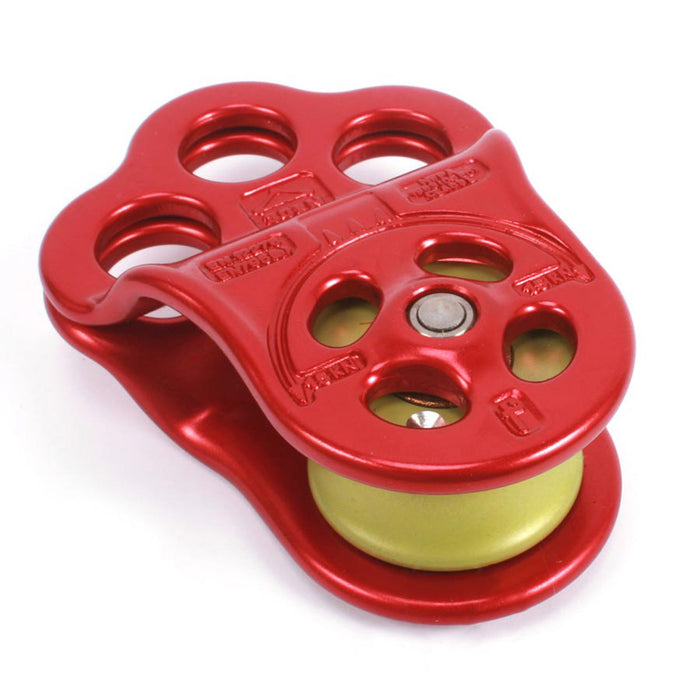

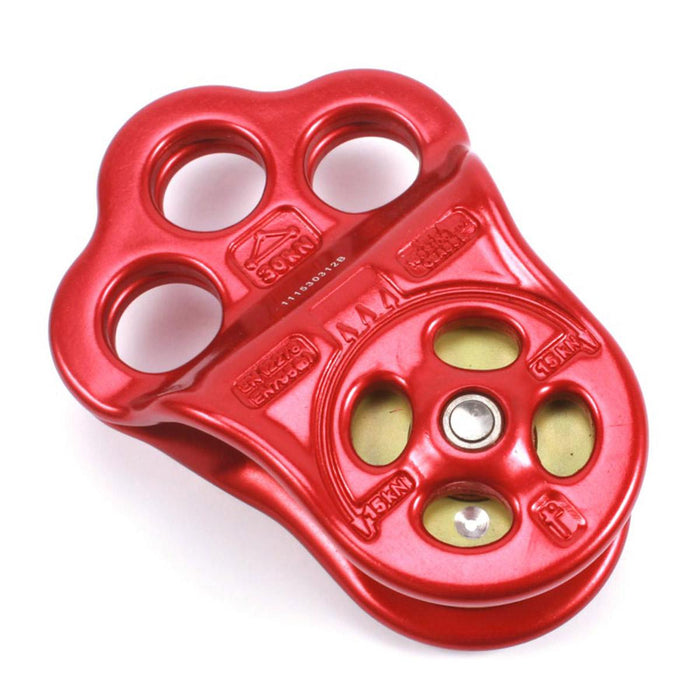

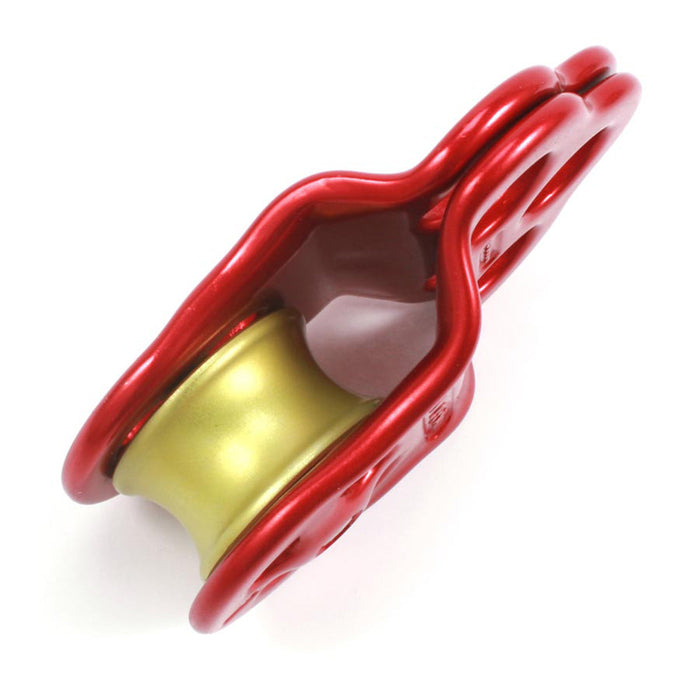

DMM Hitch Climber Pulley with a small three hole rigging plate.

The Hitch Climber Pulley combines a rigging plate with a highly efficient pulley. DMM created this pulley to be the center of your friction hitch system. The Hitch Climber can help organize carabiners, reducing the chance for cross-loading or poor positioning. While climbing, a second climbing rope or flipline can be attached to the third hole. The Hitch Climber also has rescue and hauling applications.

Features:

  • Triple attachment points for special rigging applications
  • Hot forged aluminum side plates provide strength and durability
  • Textile friendly surfaces
  • Heat treated stainless steel spindles for high strength and corrosion resistance
  • Pre lubricated sintered bronze bearings for ultra smooth operation
  • Riveted and tamperproof assembly
  • Recommended for arborist and rescue applications
  • Conforms to all of the following standards: EN 12278:2007, EN 795(b)1997, NFPA 1983(06 ED) Type L
Sizes: 94 x 68 x 33mm
Breaking Load:

A=30kN | B=15kN
(A=6744 lbs | B=3372 lbs)
Work Load Limit:

A=6kN | B=3kN
(A=1348 lbs | B=674 lbs)
Rope ⌀: ≤ 13mm (1/2")
Weight: 133 grams
