Weight: 0.05 lb

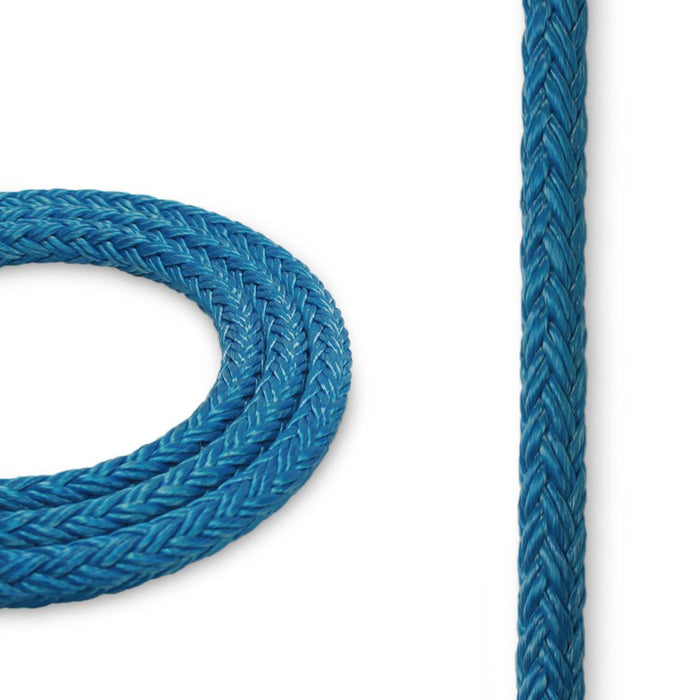

A high strength / low stretch single braid polyester rope specifically designed with two ends per carrier to allow higher production splicing for standard slings and Whoopie Slings. This design also allows more rope surface conformance to objects being lifted than standard single braid constructions. Tenex-TEC is Samthane coated to enhance the products wear life.
Also available in:3/8" 7/16" 1/2" 5/8" 3/4" 7/8"
|3/8"||6,100 lbs.||Blue*||3% @ 30% of Breaking Strength|
|7/16"||9,500 lbs.||Yellow*||3% @ 30% of Breaking Strength|
|1/2"||13,100 lbs.||Blue*||3% @ 30% of Breaking Strength|
|5/8"||18,800 lbs.||Red*||3% @ 30% of Breaking Strength|
|3/4"||22,400 lbs.||Blue*||3% @ 30% of Breaking Strength|
|7/8"||34,200 lbs.||Green*||3% @ 30% of Breaking Strength|
Wherever possible, use splices constructed to safe specifications. A proper splice on a rope can maintain 80% to 100% of the new rope average break strength. Trained personnel should construct all splices. If knots are used on a rope, be aware that they can reduce the rope's strength by up to 50%. If knots are required, be sure to select the proper knot for the job.
All rope has a rating referred to as a "tensile strength" or "average break strength." This number is the amount of weight that the rope should be able to hold in ideal conditions, specifically, a new rope, with no knots or splices, at room temperature. These break strength numbers are based on actual destructive break testing by the manufacturer or a certified third-party testing facility. Ropes are tested over many cycles and the average break strength is determined and specified for the product. We test our ropes personally, and all our splicers have their work tested on an ongoing basis using a certified test bed facility. This is to ensure that their splicing work is perfect, and that their splicing technique and skills are 100% within acceptable splicing guidelines set by the rope industry. Even the best splices and best rope can break if overloaded or used improperly. Make sure you thoroughly understand what you are doing with a rope. Get the right rope for the right job. If you have questions or are even remotely unsure or have doubts. STOP and get the information you need to BE SURE you are doing things safely.
ope wear, knots, extreme hot or cold temperatures, chemicals, the manner in which the load is applied and other factors will result in a break strength lower than the stated average break strength.
A rope with a stated or advertised break strength, in pounds will not necessarily safely hold something that weighs that amount! Refer to the SAFE WORKING LOAD of a specific rope for more information.
IF IN DOUBT, ASK A PROFESSIONAL. We get calls all the time from people who have questions about what is the best rope to use for any given application. Don't be afraid to ask. Ultimately YOU are responsible for your safety using ANY rope, so don't chance it.
In a broad generalization, most working loads vary from 1/10 to 1/4 of the average break strength of the rope. Applications for rope used in life support or personal fall protection environments must use the 1/10 ratio.
Our standard stocking color policy is to have each diameter of Tenex in its own unique color. Depending on production and inventory the colors might be different from order to order. If you have a specific color of Tenex that you need give us a call at the shop (419) 873-8300 and we will do our best to accommodate your needs.
